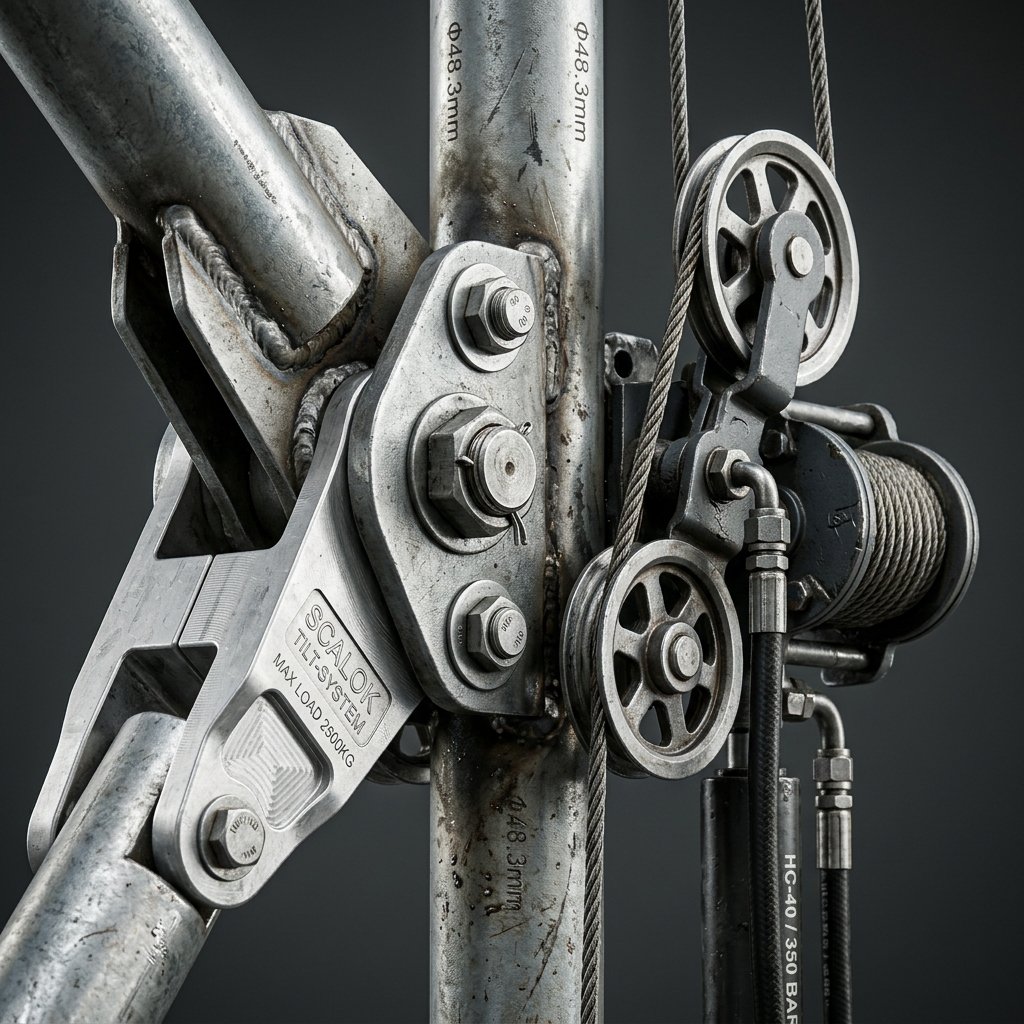

Inspect the 90° winch tilt mechanism, horizontal transport clearance, anti-slip platform, and heavy-duty wheels.

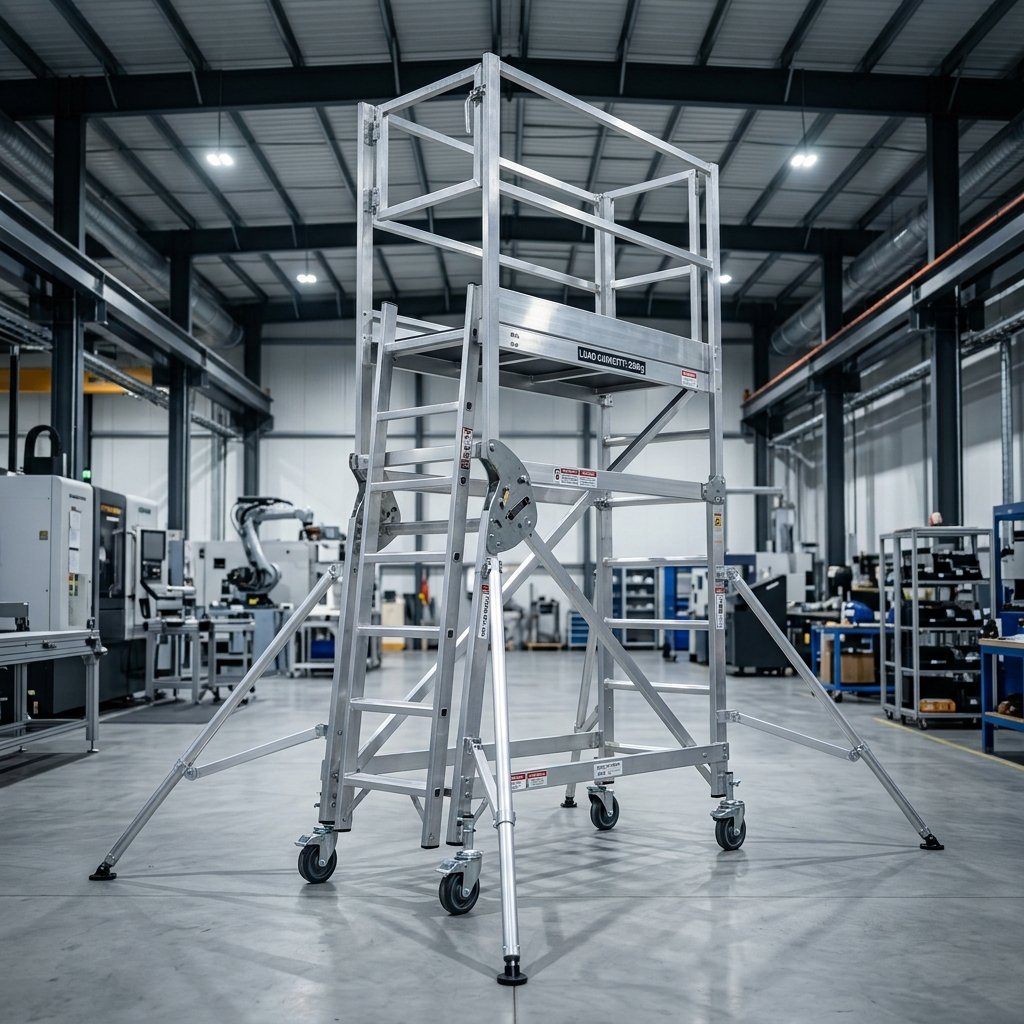

Heavy Duty Winch Tilt Series (8ft - 50ft Height)
Engineered with a heavy-duty hydraulic/winch pivot mechanism that enables the tall tower to tilt 90 degrees horizontally for effortless transport through low doorways and narrow industrial gates.
Eliminate scaffolding teardowns. Tilt the tower in seconds to clear low doorways and obstacle-heavy plant corridors.
Built from high-tensile 6061-T6 extruded alloy ensuring structural stiffness with light weight.

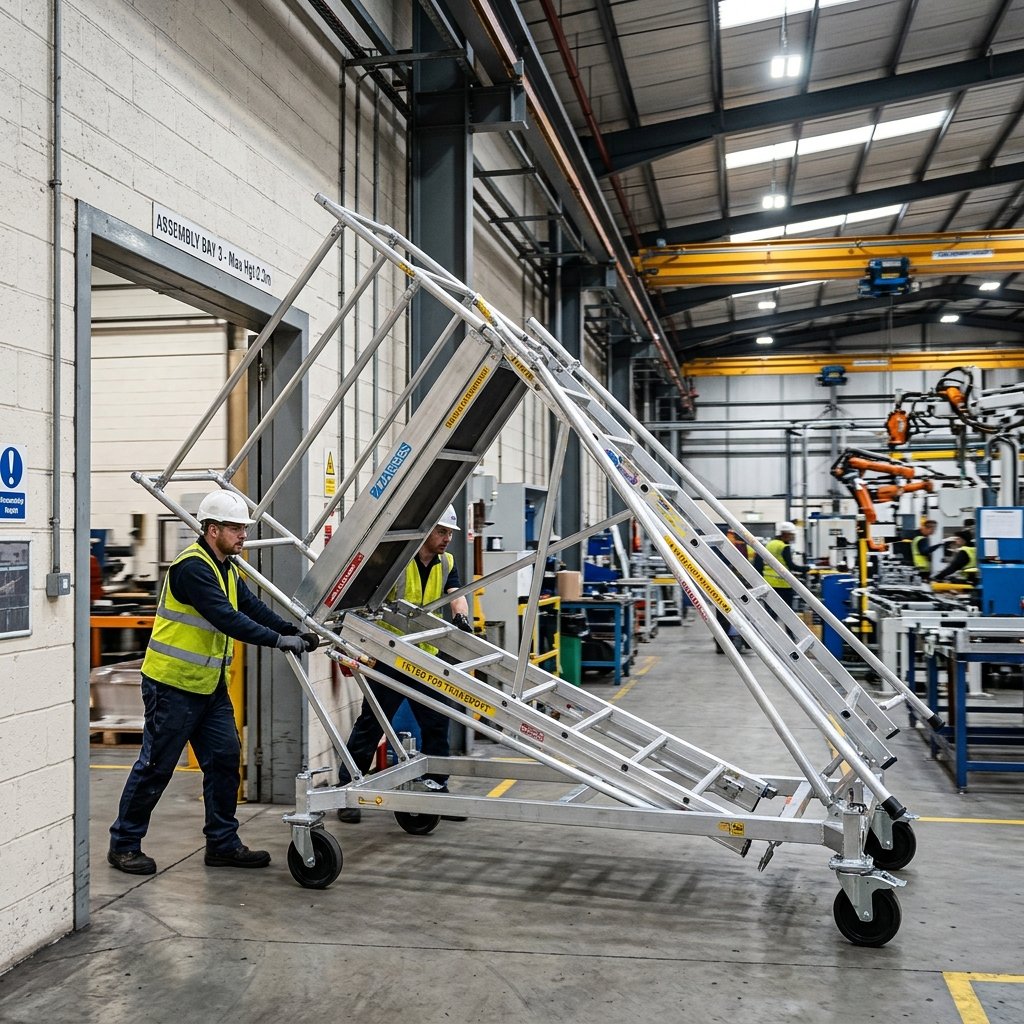

Pivots 90 degrees horizontally to easily navigate 7ft factory doors and tight overhead clearance.

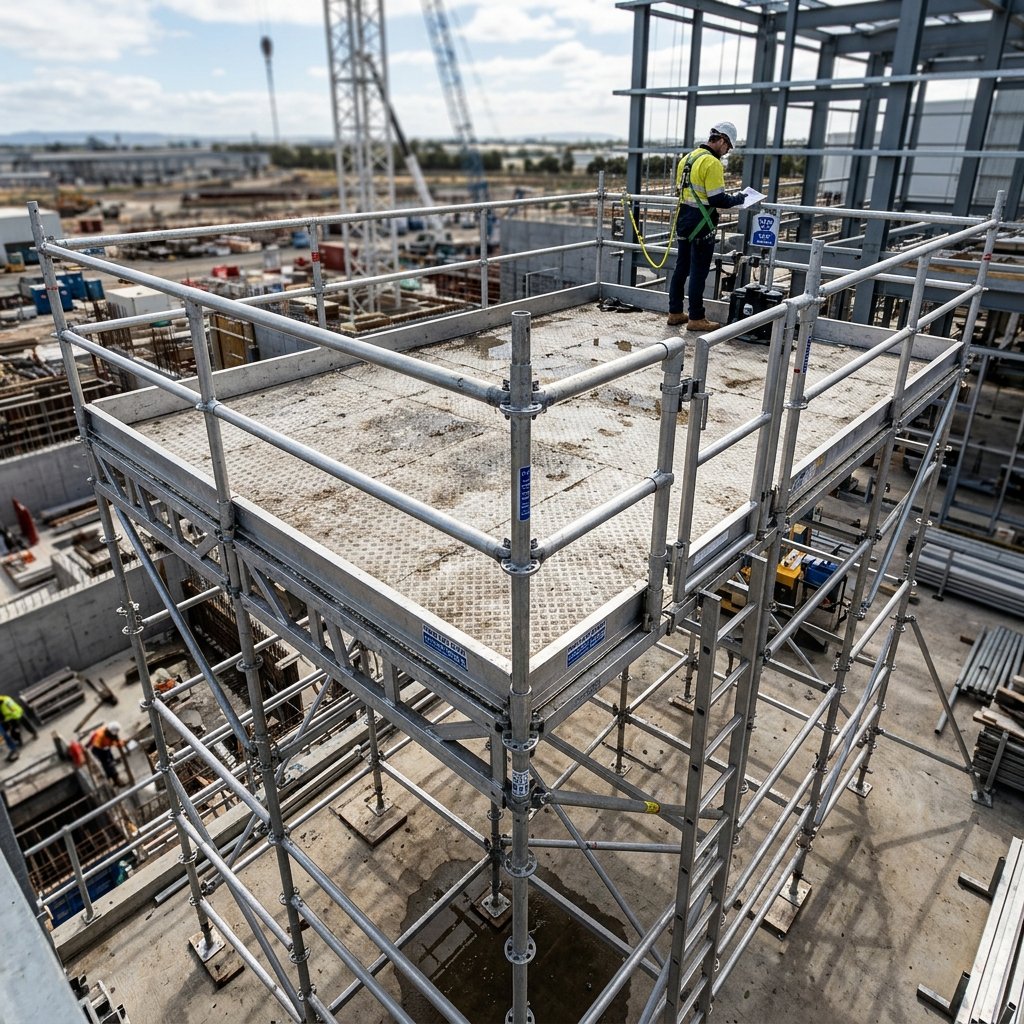

Diamond checker plate floor texture providing non-skid foot traction in greasy oil environment.
Full 1.1m guard rail enclosure with safety kick-boards and self-locking access entry gate.
High-load polyurethane swivel wheels with foot-activated dual brake lock mechanism.
Modular frame configurations adjustable from 8 feet up to 50 feet platform standing height.
Platform tested to carry 150kg to 200kg safe working load supporting technicians & heavy gear.
Weatherproof anodized surface treatment suitable for outdoor power stations and chemical plants.
Tailored platform dimensions, cantilever top extensions, and narrow aisle outrigger bases.
Select your desired platform height to view dynamic load and dimensional specifications.
| Specification Parameter | Industrial Grade Value |
|---|---|
| Material | Extruded Aluminium Alloy 6061-T6 |
| Height Options | 20 Ft (6.0m) |
| Max Safe Working Height | 26 Ft (7.9m) |
| Platform Load Capacity | 150–200 kg Platform Load |
| Working Platform Surface | Anti Slip Aluminium Diamond Plate (6 Ft x 2.5 Ft) |
| Base & Stabilization | 3.5 Ft x 5.5 Ft Base with Tilt Winch |
| Wheel Type | 8 inch Heavy Duty Lockable Castor Wheels |
| Surface Finish | Corrosion Resistant Anodized Metallic Finish |
| Application Target | Industrial Plant & Overhead Maintenance |
| Warranty | 5 Years Manufacturer Warranty |
Trusted by operations leaders across India's largest infrastructure and manufacturing installations.
Key Advantage
Passes through 7ft doors without disassembly
Compare MSJ engineering standards against generic local suppliers.
Trusted Manufacturer
Generic Market Products
Prioritize plant safety with ISO-certified MSJ towers.
Read how MSJ tiltable towers improved plant safety and reduced maintenance downtime.
"The 90-degree winch tilt mechanism on MSJ's 30ft tower ladder saved our plant endless hours. Our technicians tilt the tower in under 2 minutes to roll through 7-foot factory doorways without taking down the scaffolding structure."
Plant Maintenance Lead, Pharma Corp
"We ordered two 40ft tiltable towers for our railway maintenance workshop. Outstanding build quality, robust heavy-duty castor brakes, and prompt Pan-India logistics."
Works Manager, Northern Rail Workshop
"Working over high-voltage power plant equipment required reliable non-corrosive aluminium towers. MSJ delivered ISO load test certification and custom outrigger extensions."
Chief Engineer, Thermal Power Substation
Everything you need to know about MSJ Aluminium Tiltable Tower Ladders.
